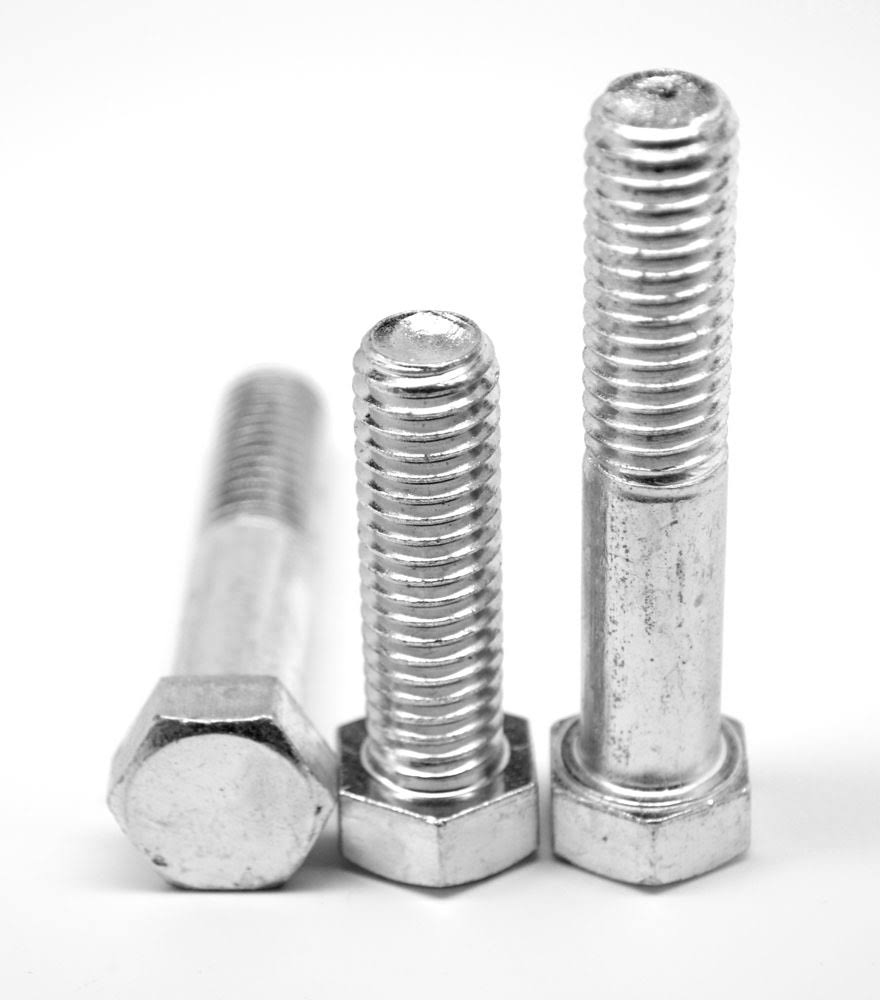

3/8x22-16 x 3/4x22 Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Zinc Plated P409704
Sale price
$17.90
Regular price $80.38
Skip to product information
Part #: 0000-114165. Buy as few as 1500 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-114165 Fastener Type: Hex Bolt Size Description: 3/8'-16 x 3/4' (FT) Diameter/Nominal Size: 3/8' Length: 3/4' Wrench Size/Across Flats: 9/16' (0.551-0.562') Width Across Corners: 0.628-0.650' Head Height: 15/64' (0.226-0.243') Thread Pitch: 16 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: Full System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Zinc Plated Head Type: Hex Drive Type: External Hex Standards Met: A307 Average Piece Weight: 0.0324300 lbs. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. What is the difference between a hex cap screw and a hex bolt? A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.
3/8x22-16 x 3/4x22 Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Zinc Plated P409704
Sale price
$17.90
Regular price $80.38
Shipping calculated at checkout.
